Sukup Heavy Duty Hopper Bins

Specifications

Model	Heavy Duty Hopper Bins	Category Name	Grain Storage & Handling	Year	2024
Sale Type	New	Manufacturer	Sukup	Odometer	km
Price	Contact for price CAD

Description

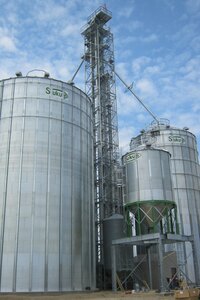

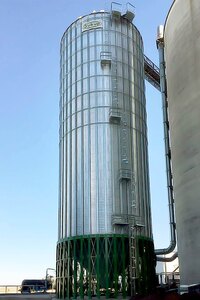

The Heavy-Duty Hopper Bin is a robust and versatile grain storage solution. Heavy-Duty Hopper Bins may be mounted on overhead superstructures, making it an ideal choice for efficiently loading semis or train cars. The design of Sukup Heavy-Duty Hopper Bottom Bins is among the strongest in the industry, with wide corrugations, extra-strong stiffeners, and heavy-duty hopper panels.

With a strong foundation, the hopper base is tailored to accommodate the bin’s size and the load capacity required. Its construction begins with 70,000 psi tensile strength steel, forming wide flange legs for a base that guarantees stability and durability. The inclusion of I-beam construction and L-shaped cross-bracing between the legs adds even more stability, ensuring a reliable storage facility.

The inner apron of the Heavy-Duty Hopper Bottom Bin features hopper ring flashing that covers the ledge where the tank and bottom cone join. This innovative design element not only prevents grain from accumulating on the ledge but also facilitates a smooth flow of grain into the hopper, enhancing the operational efficiency of the bin.

Ideal for agricultural storage and management, this Heavy-Duty Hopper Bin stands as a testament to enduring design and functionality, delivering reliability and efficiency for grain storage needs.

PRODUCT FEATURES

All Bins are Manufactured Under Sukup Manufacturing Company’s ISO 9001 Certification Requirements
Super Shield^® to Provide an Extra Layer of Protection
Innovative Water Resistant Design
SAE Grade 8.0 Hardware with JS1000^® Hour Plating
Rack and Pinion Gate

STANDARD FEATURES

Standard Features

15’ -30’, 3-12 rings tall; 36', 10-18 rings tall; 42'; and 48' also available
2,000 - 64,600 bushel capacity
16” Unload outlet is standard, 22” unload outlet available
3/8" or 1/2" bolts round-head bolts used on hopper panels prevent grain from bridging
May be mounted on overhead super structure or used as a working bin
Heavy-Duty Hopper Bins are designed for storage and aeration only, NOT DRYING; wet grain (over 16% moisture) may be stored short-term for a maximum of 72 hours; aeration is needed for storage

Hopper Features

70 ksi tensile strength steel wide flange legs for extra-strong and stable base
L-shaped cross-bracing between the legs adds even more stability
Hopper Bottom – The 45^o hopper is made of heavy-gauge, galvanized steel for strength and durability
Round head bolts on hopper portion minimize grain build-up
Exclusive inner apron prevents grain from accumulating on the ledge where the sidewall and bottom cone join
Rack and pinion opener comes standard on all Heavy-Duty Hopper Bins
3' of ground clearance under the rack-and-pinion opener
4' clearance on 36" - 48"

Sidewall Features

4" wide corrugation, 44" tall sidewall sheets
Bolts are SAE Grade 8.0 for added strength with JS1000^® or equivalent coating for exceptional corrosion protection
70 ksi tensile strength steel

Roof Features

15'-36' standard roof peak load rating is 5,000 lbs., evenly distributed on peak ring as pure vertical load with uniformly distributed roof snow load calculated from 40 psf ground snow zone or 105 mph wind zone as defined by ASCE7-10 Code
Rigidized roof panel with 3" ribs that serve as rafters, strengthening the roof sheets
Continuous eave clip attachment provides a strong roof to sidewall connection
Roof rings are standard on Sukup bins 18' and larger; exclusive, roof ring clips (U.S. Patent #7,654,048) ensure that roof rings stay in place for years to come
20" x 35.5" oval manhole opening is a comfortable fit for most operators
Manhole cover is held securely in place by special latches; when open, the lid lays flat against the roof, eliminating the mess of water and soggy bees wings that can accumulate
38" peak opening provides approximately 8 ft² of air exhaust area
Peak lid cover is mounted on steel rods to allow it to slide open and closed and prevent it from blowing around on windy days

ACCESSORIES

Product Accessories

Hopper Cone Inspection Panel allows you to monitor the amount of wear on the cone panel liner
Available up to 24 rings, depending on bin diameter
44" door with exclusive Hammerhead™ handles (U.S. Patent #8,123,260)
Ladder packages available
Ground-operated lid opener
Triangle Hopper Aeration up to 36x18R
